65w GaN disassembled report

Views: 31     Author: Site Editor     Publish Time: 2022-08-17      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Hung Da Shun brand is printed on the waist Recently, the charging head network got A 65W gallium nitride charger from HUWDER Hongdashun, which is A product with 65W gallium nitride quick charge that is standard to the mainstream market. It is equipped with three USB ports 2C1A, and both the double C ports support 65W PD fast charge, which supports blind power insertion and is easy to use. The USB-A port supports Huawei 22.5W SCP fast charge, etc. Meet the demand for Apple, Huawei and other brand products. The following charging head net on the charger for detailed disassembly, to see how the actual material work.

The charging head network has also disassembled Hunda Shun 120W 2A2C four-port fast charging appliance, Hongda Shun 65W 2C1A gallium nitride fast charging appliance, Hongda Shun 100W 2C3A five-port fast charging appliance and other products, which are welcome to check.

A, Hongda Shun 65W GAN charger appearance

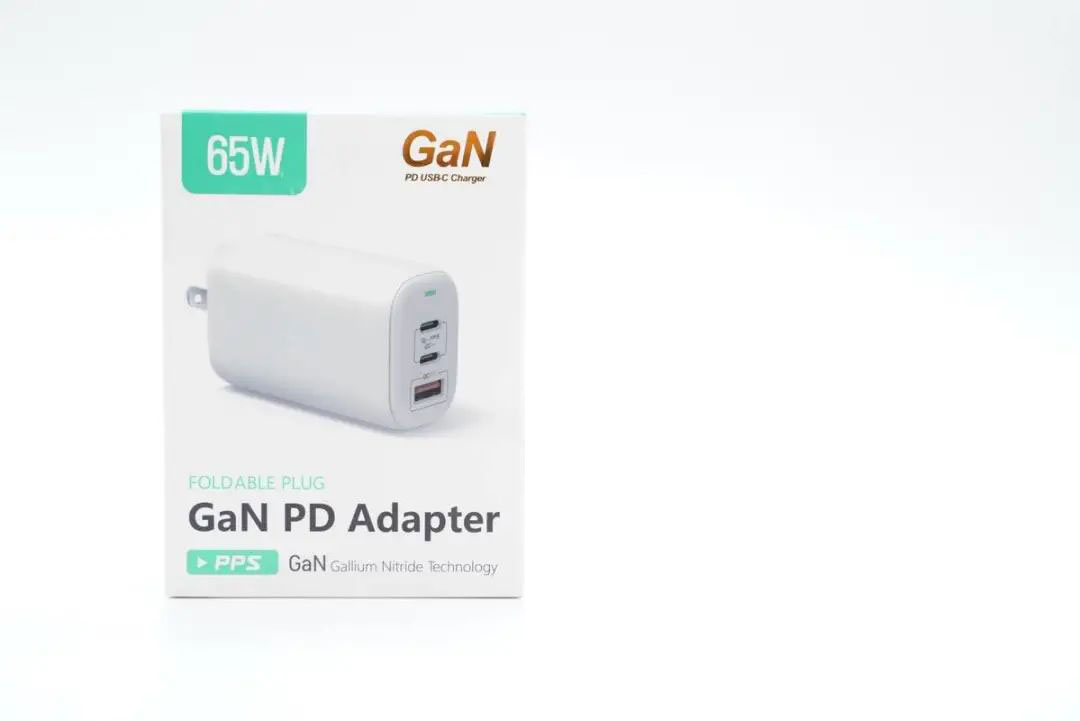

On the front of the package, the charger's appearance drawing, name and 65W and GaN logos are printed.


Charger parameter information is printed on the back.

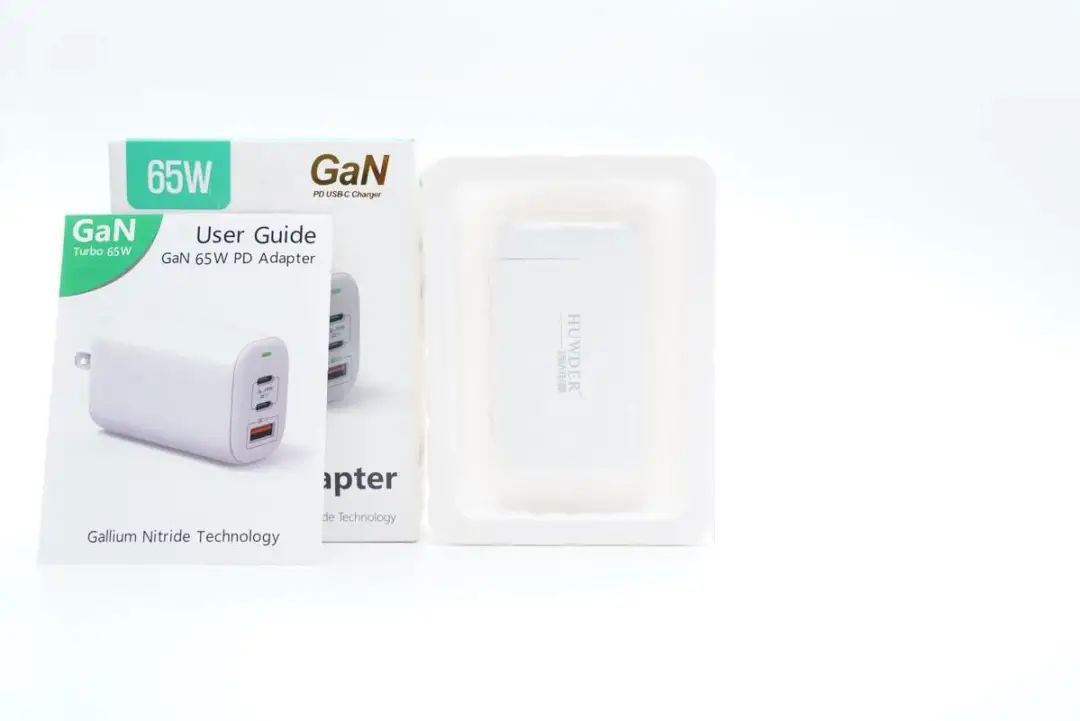

Package contains charger and instruction manual Charger adopts PC material white shell, matte waist and bright side color collision design, rounded corners.

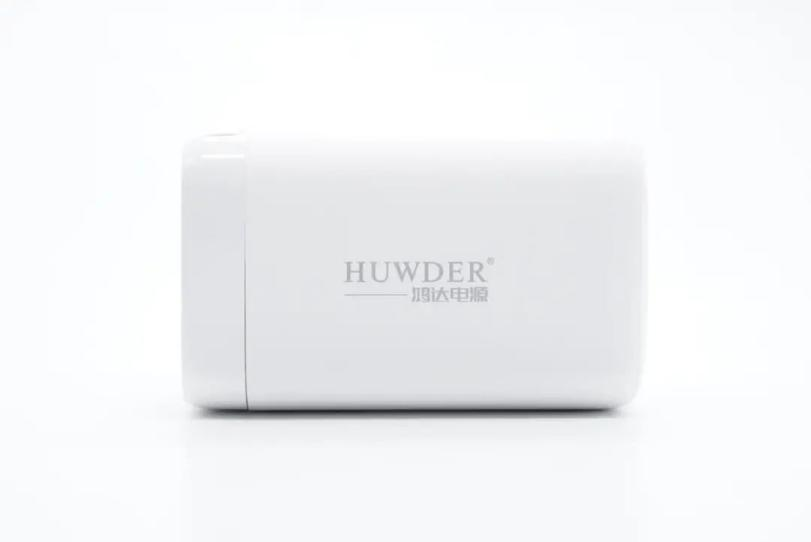

Hung Da Shun brand is printed on the waist

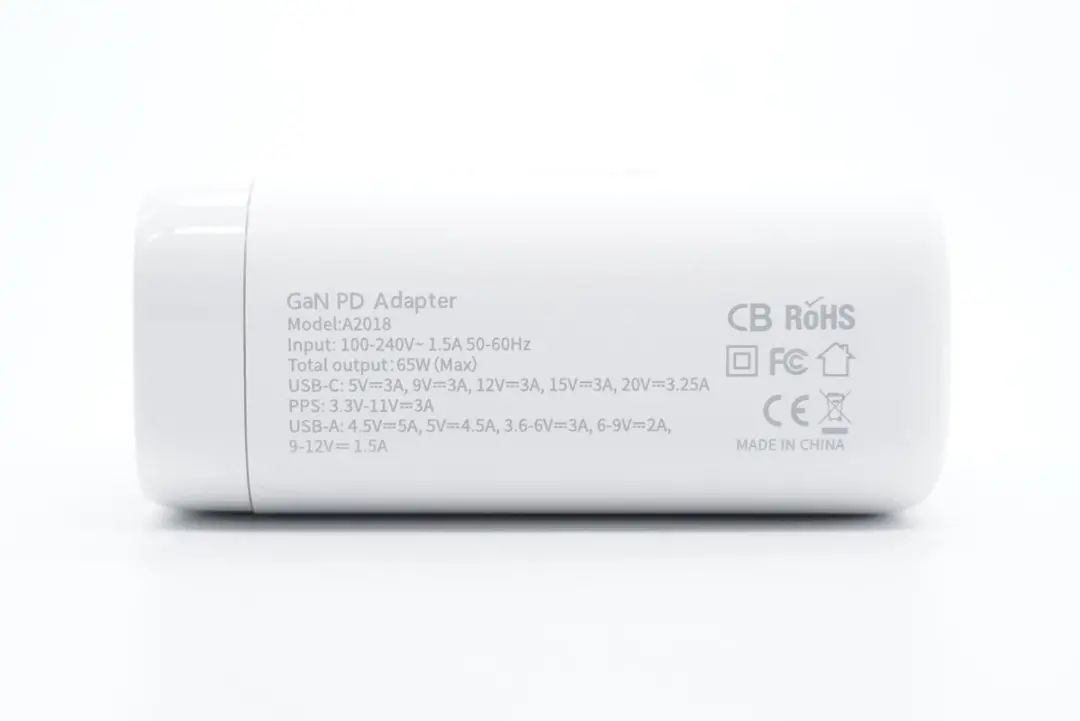

Charger parameters are printed on the side:

Model: A2018

Input: 100-240V~ 50/60Hz 1.5A

Usb-c output: 5V3A, 9V3A, 12V3A, 15V3A, 20V3.25A, 3.3-11V3A

Usb-a output: 4.5V5A, 5V4.5A, 3.6-6V3a, 6-9V2A, 9-12V1.5A

The product has passed FCC, CE, CB, RoHS certification.


The charger comes with a foldable gauge pin, which makes it portable and doesn't scratch other devices in the bag.

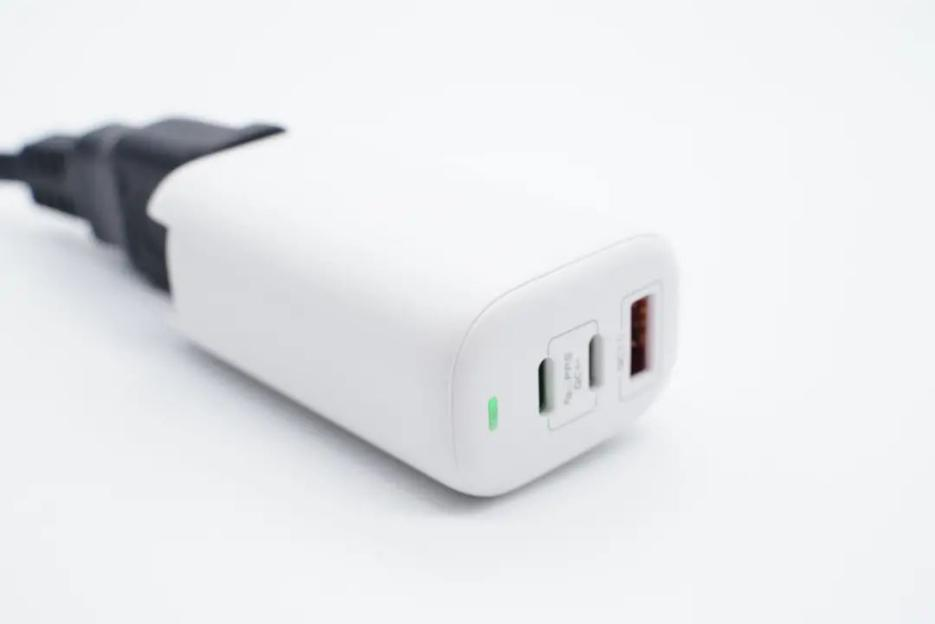

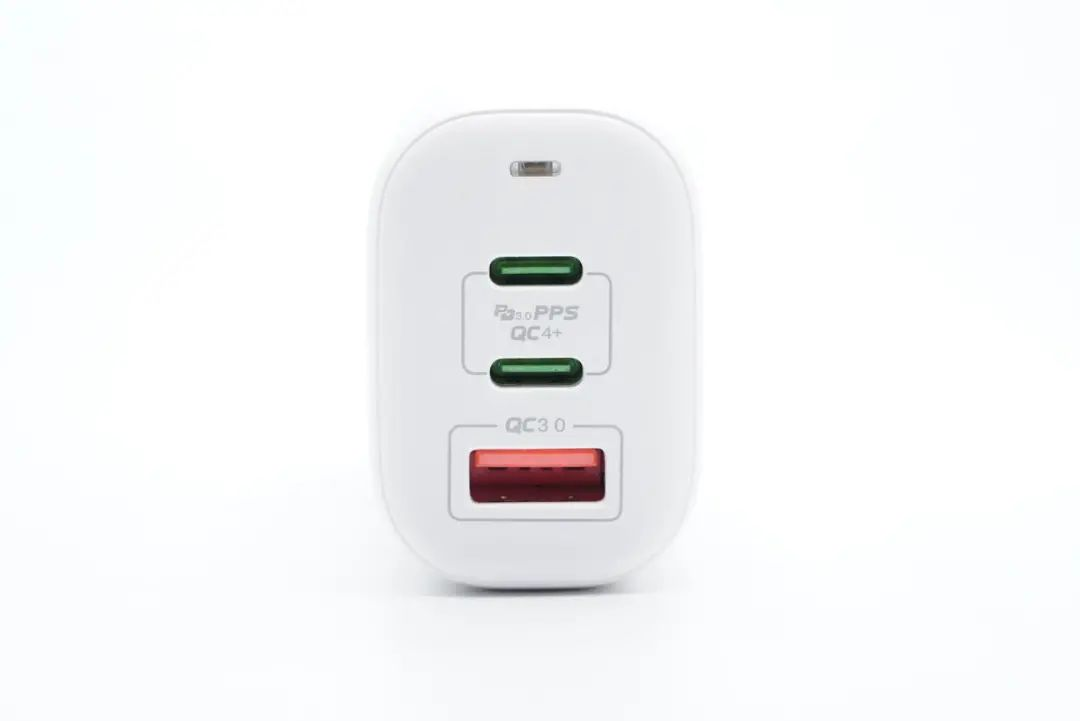

The top is equipped with three output ports of 2C1A and LED indicator light.

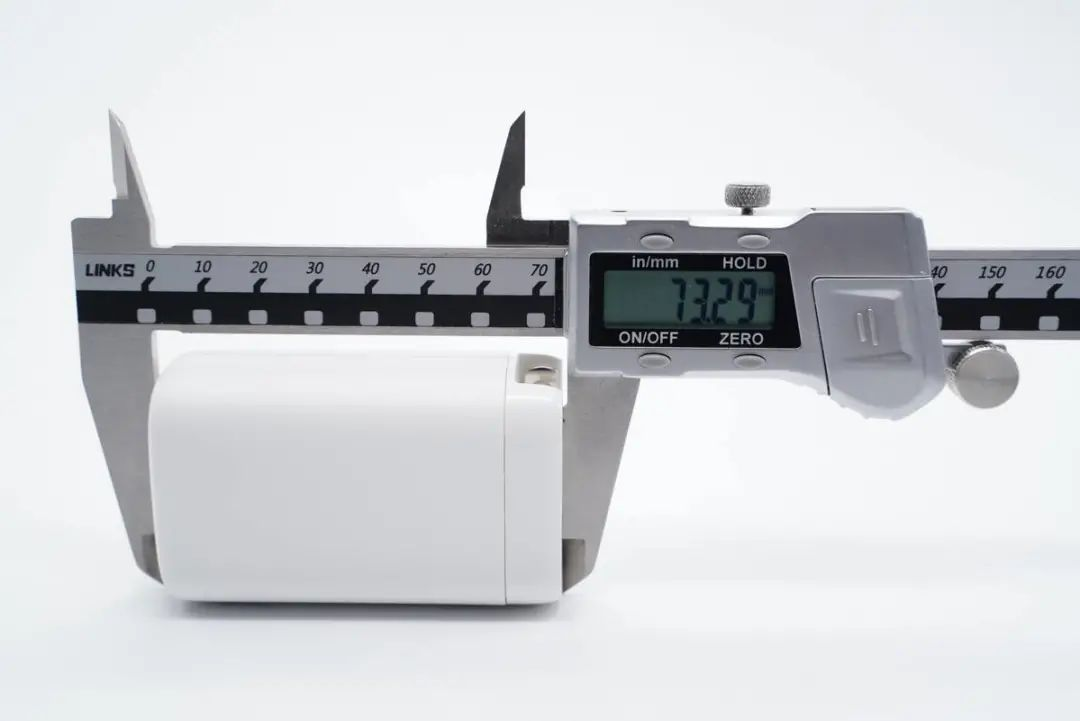

The height of charger body is 73.29mm.

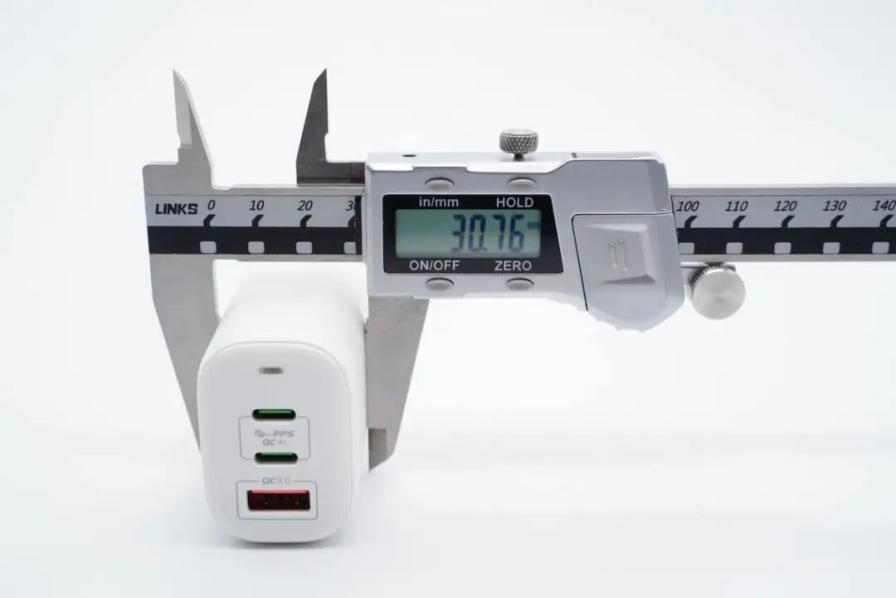

The width is 30.76mm.


The thickness is 45.31mm.

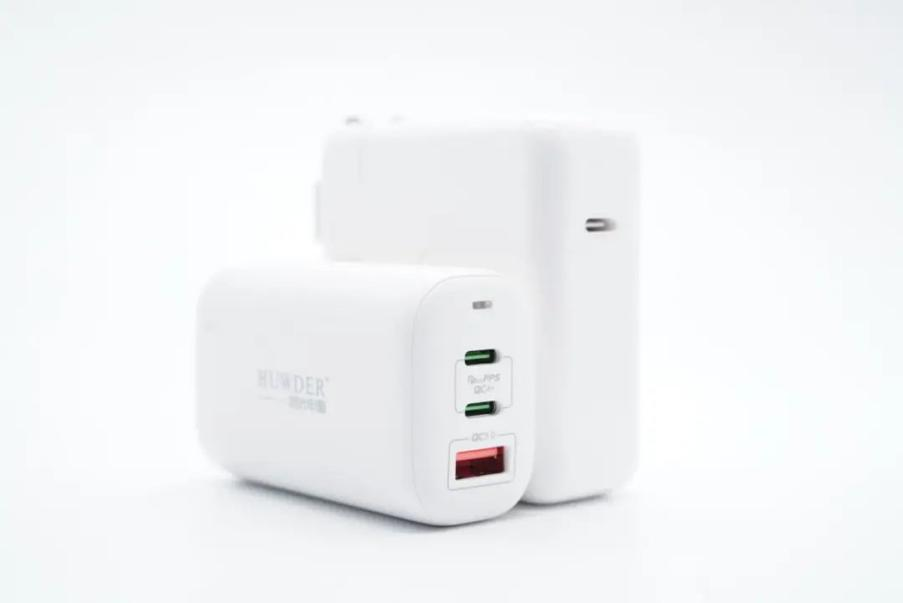

Compared with Apple 61W charger, the volume advantage is obvious.

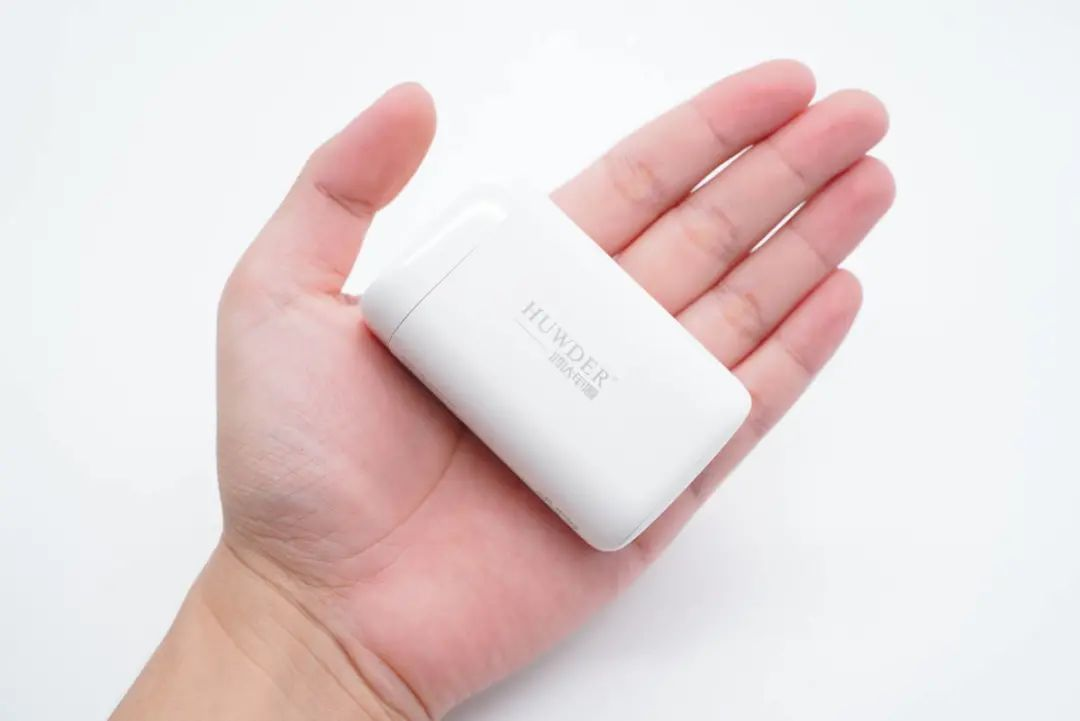

The intuitive feeling of holding it in your hand.

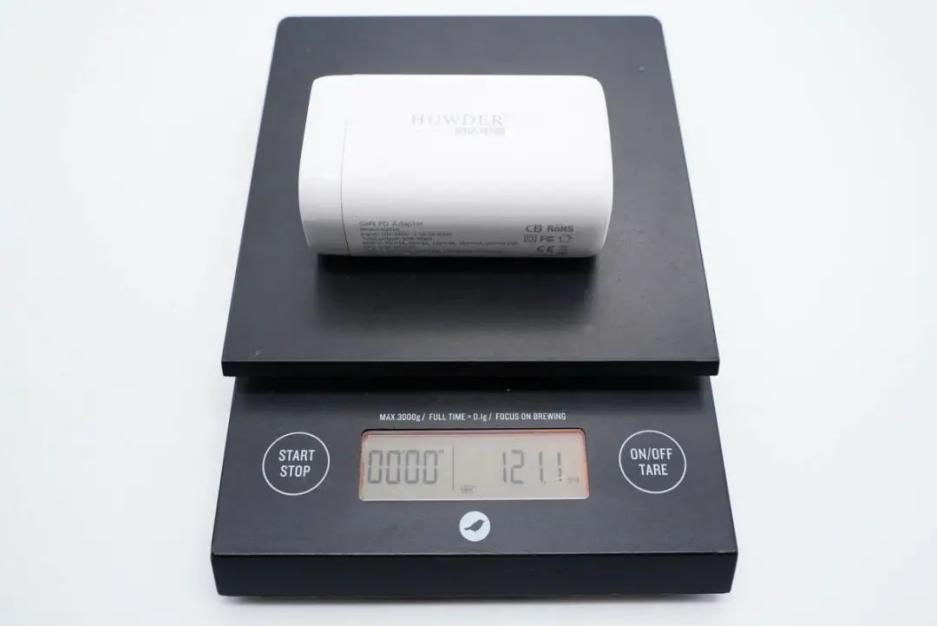

It weighs about 121g


The power indicator is green on.

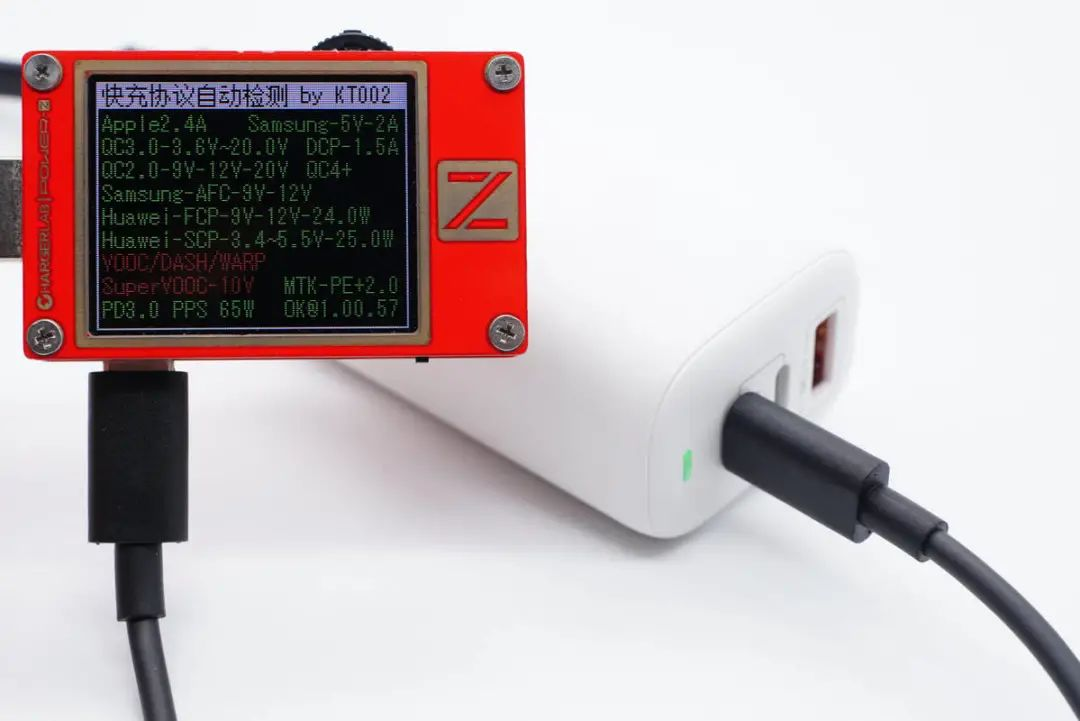

Using ChargerLAB Power-Z KT002, USB-C1 port supports Apple 2.4A, Samsung 5V2A, DCP protocols, QC2.0/3.0, AFC, FCP, SCP, PE2.0, PD3.0, PPS fast charge protocols.

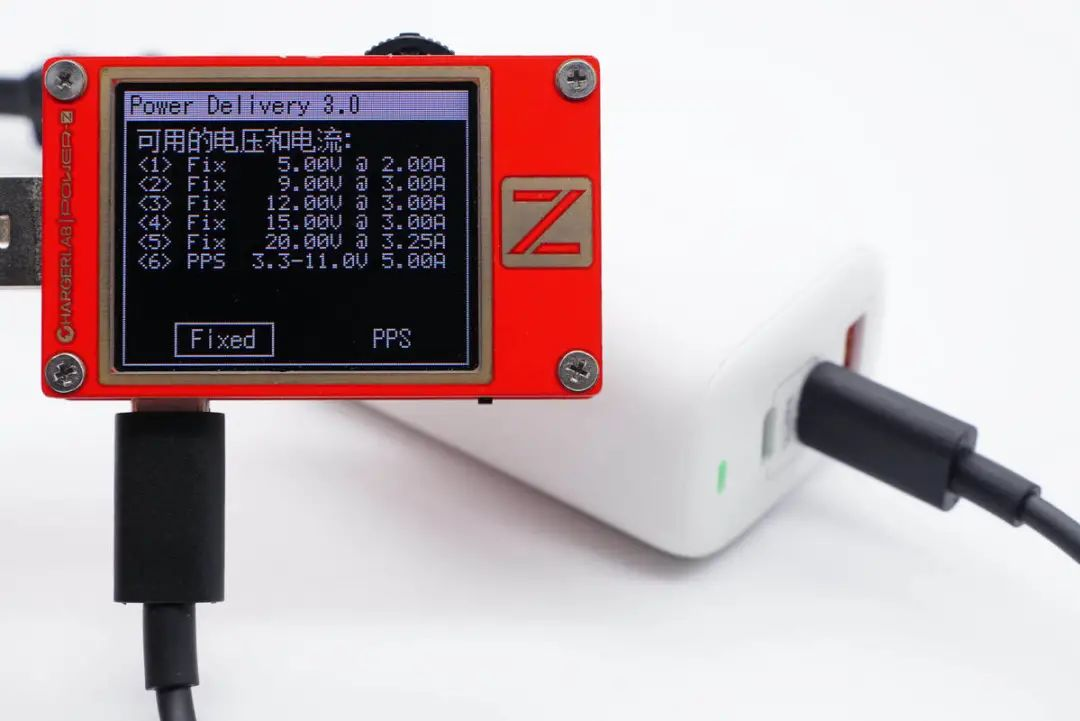

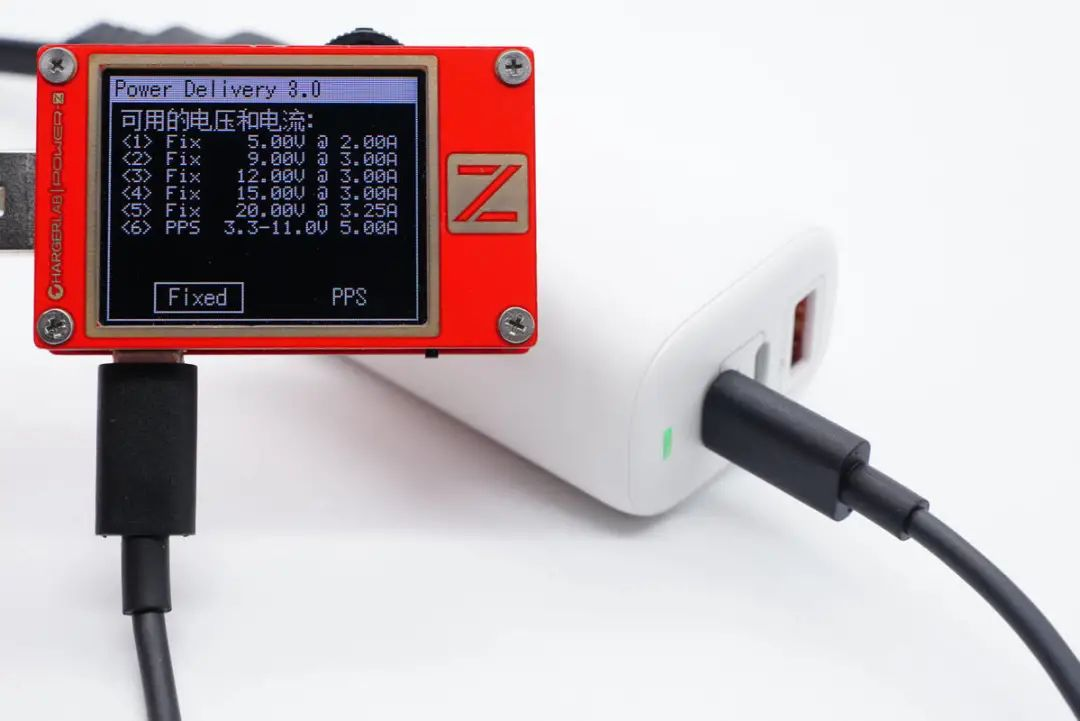

At the same time, the C1 port has five sets of fixed voltage gears: 5V3A, 9V3A, 12V3A, 15V3A, 20V3.25A, and a set of PPS voltage gears from 3.3-11V5A.

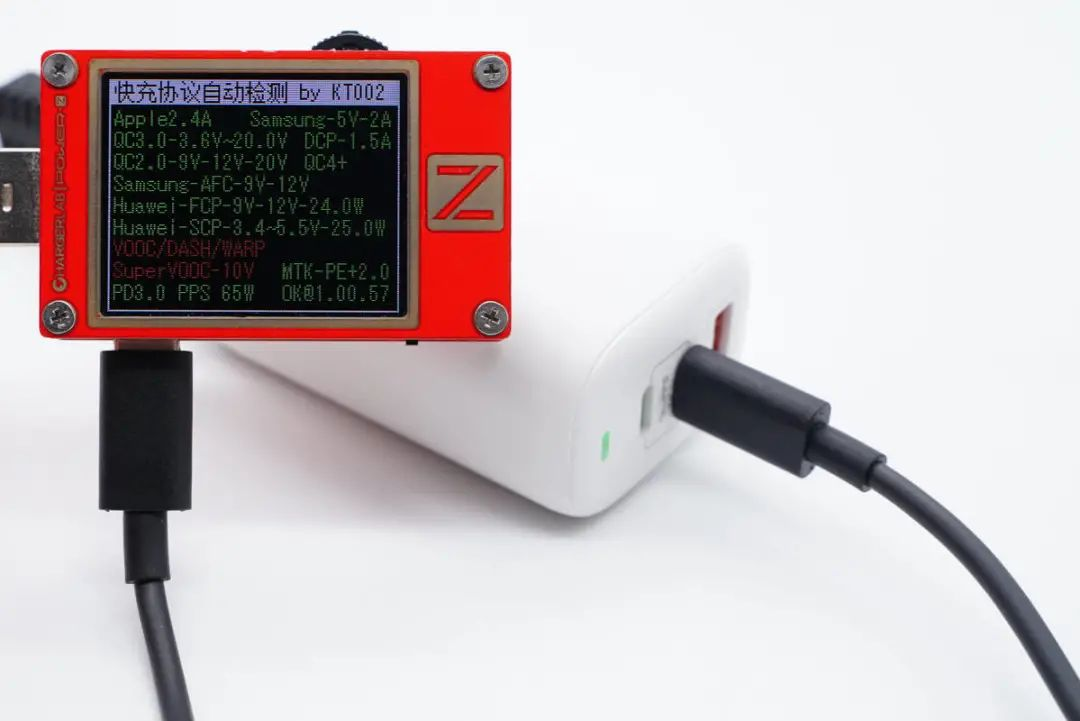

In addition, the compatibility protocol of C2 port is the same as that of C1 port.


In the same way, PDO packets support blind power insertion and are easy to use

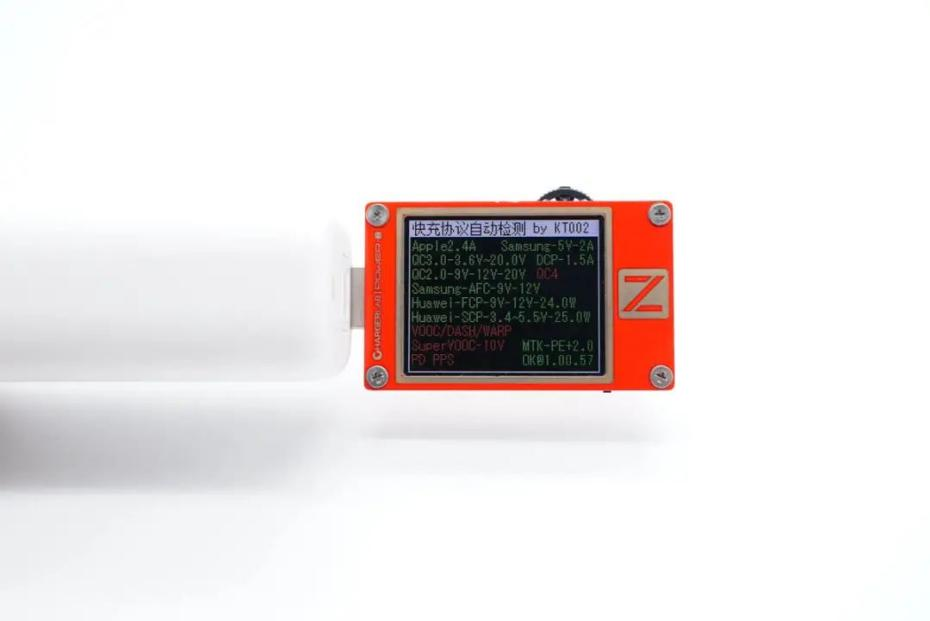

Finally, the USB-A port supports QC2.0/3.0, AFC, FCP, SCP and PE2.0 fast charge protocols.
