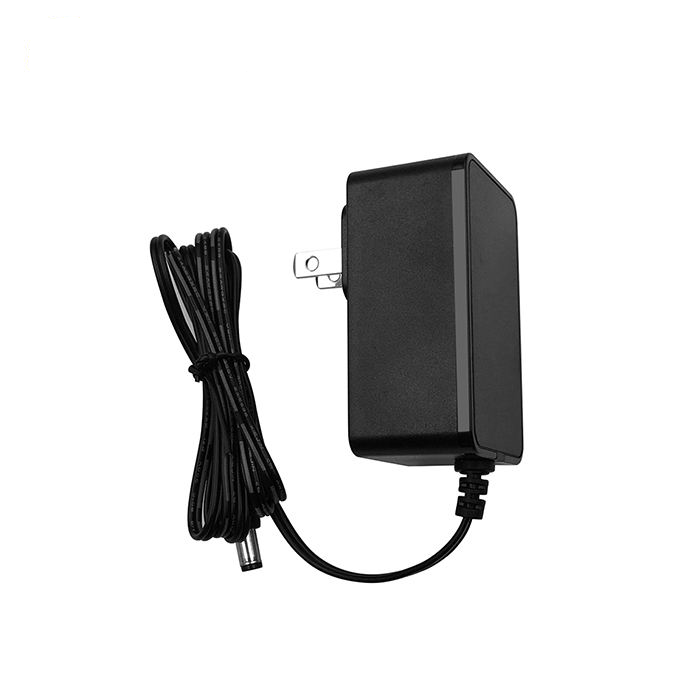

12Volt 2A Switching Power Adapter 24 Watt 12V 2 Amp Ac Dc Power Supply with Ce ul kc Kcc Pse Rcm Bis Ukca Approved

Product Description
TUV CE FCC PSE SAA RCM KCC KC BIS UKCA Approved 12V 2A Power Adapter / 24W 12V 2000MA Ac Dc Power Supply
Input Voltage: 100~240Vac(Range:90~264Vac)
Input Current: 0.4A max
Frequency: 50/60Hz(Frequency range:47~63Hz)
Output voltage: 12V
Output current: 2A
Ripple & Noise: 120mV max
Power consumption at no load: 0.075W max
Conversion efficiency: >78.7%
Voltage regulation/Load regulation: ±2%/±5%
CC/CV
Hi-pot test: 3000 VAC/1min/5mA
Leakage current: 0.25mA max @240 VAC
With Over-current, Over-voltage, Over-temperature, Short-circuit protection function
Operating temperature: 0~45℃
Safety standards: UL1310 EN62368 UL62368 EN61558 GB8898
EMC standards: EN55032 class B FCC Part 15 class B EN55024/A1:2001 EN61000

Availability:
Quantity:
Inquire Add to Basket

  • HDS2401A

  • HUNDA

Product Description

Input Voltage: 100~240Vac(Range:90~264Vac)
Input Current: 0.4A max
Frequency: 50/60Hz(Frequency range:47~63Hz)
Output voltage: 12V
Output current: 2A
Ripple & Noise: 120mV max
Power consumption at no load: 0.075W max
Conversion efficiency: >78.7%
Voltage regulation/Load regulation: ±2%/±5%
CC/CV
Hi-pot test: 3000 VAC/1min/5mA
Leakage current: 0.25mA max @240 VAC
With Over-current, Over-voltage, Over-temperature, Short-circuit protection function
Operating temperature: 0~45℃
Safety standards: UL1310 EN62368 UL62368 EN61558 GB8898
EMC standards: EN55032 class B FCC Part 15 class B EN55024/A1:2001 EN61000

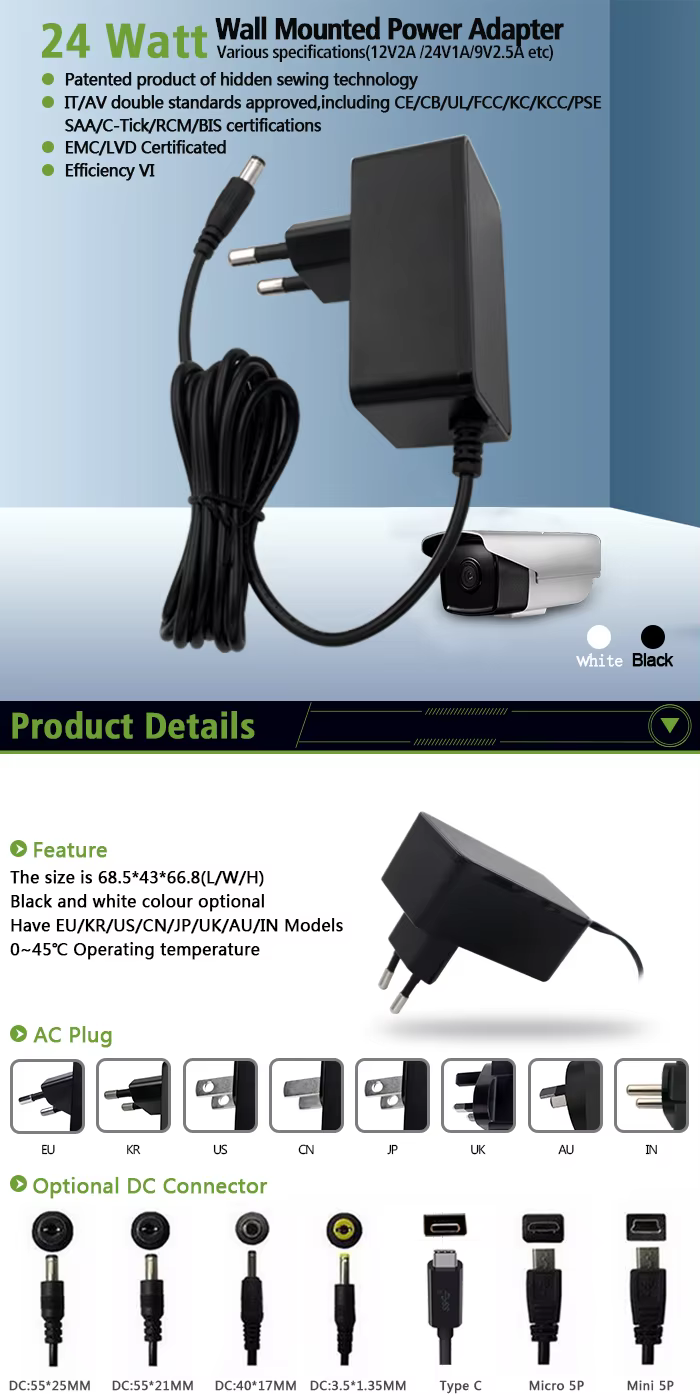

24W宣传 宣传 宣传2 宣传3
