HDS4801A
HUNDA

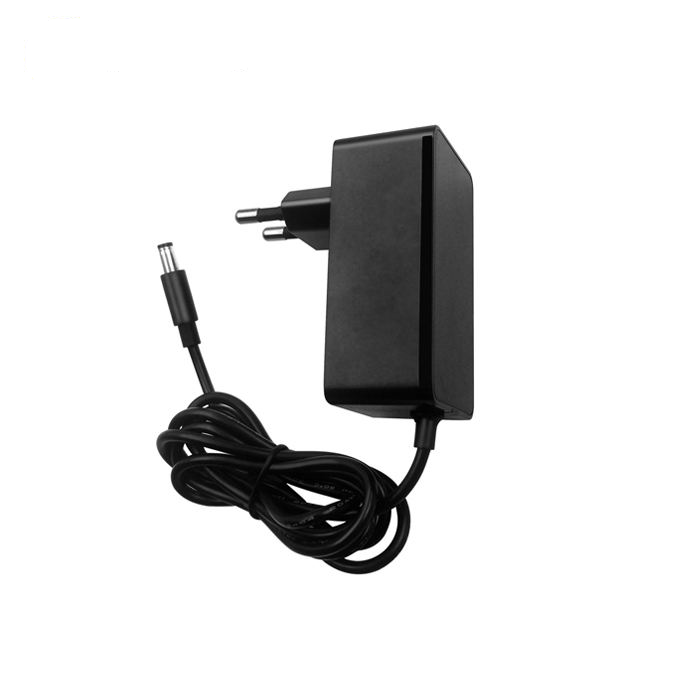

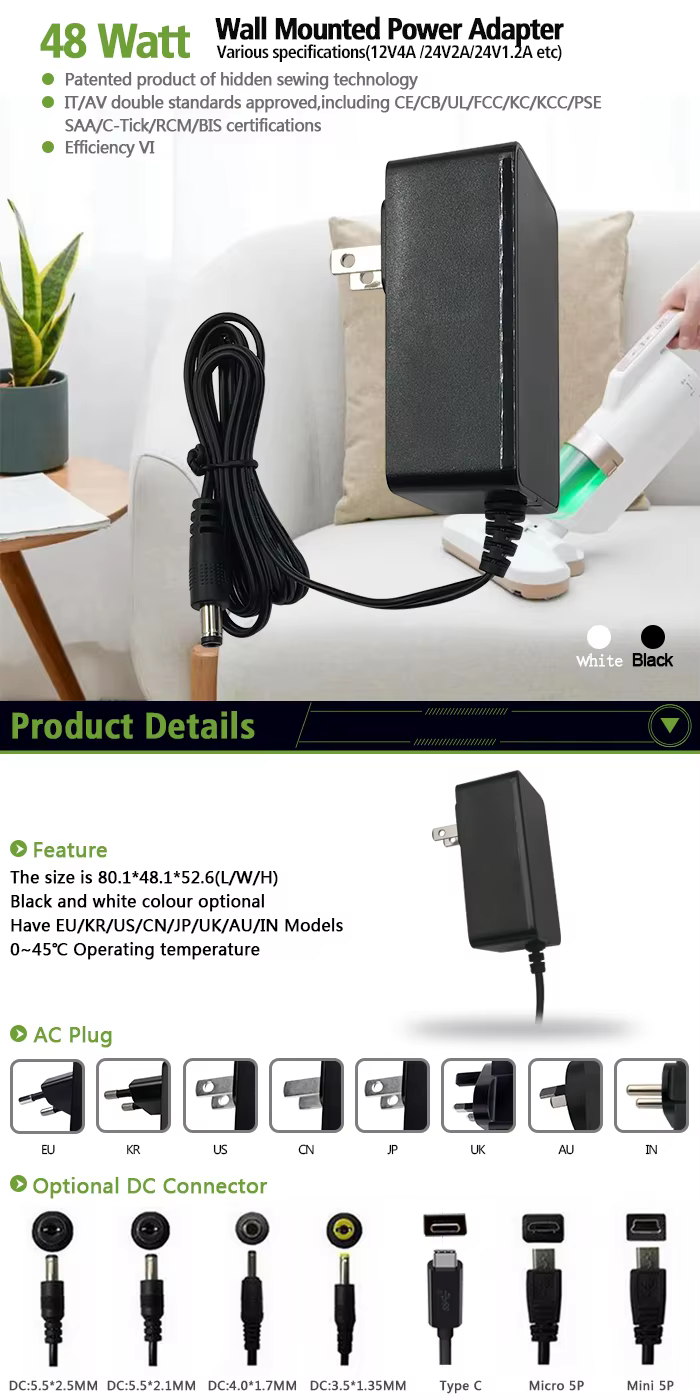

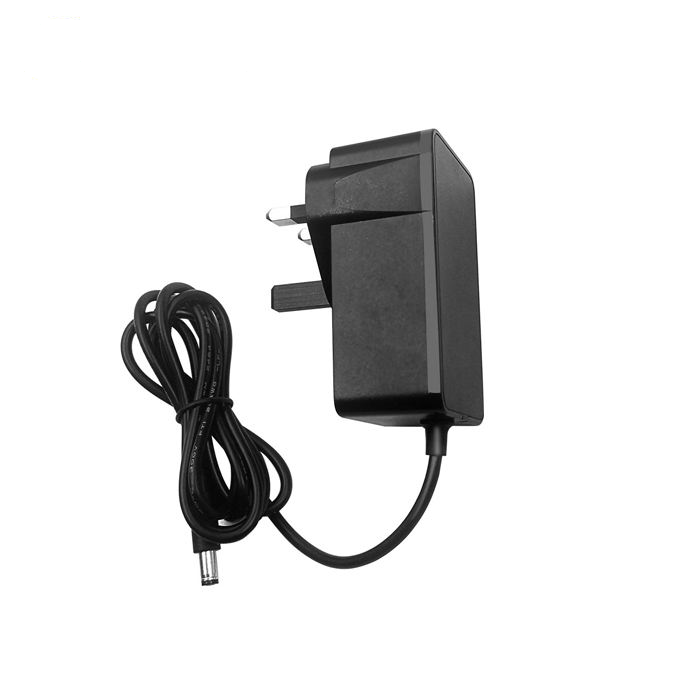

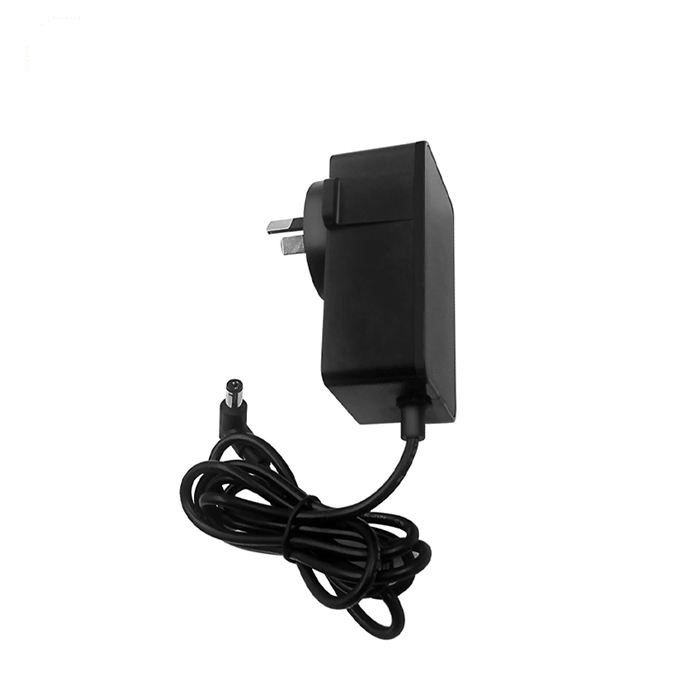

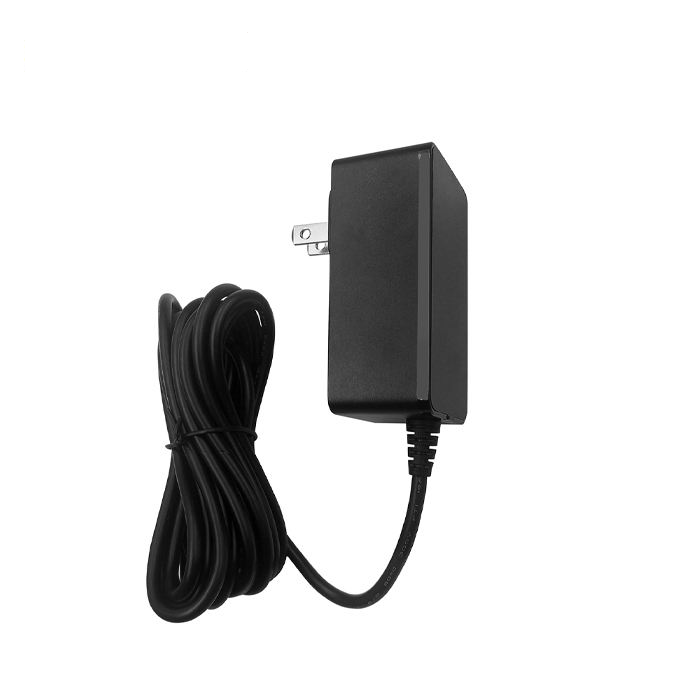

Ac to Dc 24V2A 4000MA 24 Volt 2 Amp Wall Mounted Power Adapter 24V 2A 48W with CE UL CCC PSE KC ECM UKCA BIS Approved
| Input Voltage: | 100~240Vac(Range:90~264Vac) |
| Input Current: | 1A max |
| Frequency: | 50/60Hz(Frequency range:47~63Hz) |
| Output voltage: | 24V |
| Output current: | 2A |
| Ripple & Noise: | 120mV max |
| Power consumption at no load: | 0.075W max |
| Conversion efficiency: | >88% |
| Voltage regulation/Load regulation: | ±5%/±5% |
| CC/CV | |
| Hi-pot test: | 3000 VAC/1min/5mA |
| Leakage current: | 0.25mA max @240 VAC |
| With Over-current, Over-voltage, Over-temperature, Short-circuit protection function | |
| Operating temperature: | 0~40℃ |
| Safety standards: | IEC62368 EN62368 UL62368 GB4706 GB4943 J62368 |
| EMC standards: | EN55032 class B/EN61000 GB17625 FCC Part15 |
Ac to Dc 24V2A 4000MA 24 Volt 2 Amp Wall Mounted Power Adapter 24V 2A 48W with CE UL CCC PSE KC ECM UKCA BIS Approved
| Input Voltage: | 100~240Vac(Range:90~264Vac) |
| Input Current: | 1A max |
| Frequency: | 50/60Hz(Frequency range:47~63Hz) |
| Output voltage: | 24V |
| Output current: | 2A |
| Ripple & Noise: | 120mV max |
| Power consumption at no load: | 0.075W max |
| Conversion efficiency: | >88% |
| Voltage regulation/Load regulation: | ±5%/±5% |
| CC/CV | |
| Hi-pot test: | 3000 VAC/1min/5mA |
| Leakage current: | 0.25mA max @240 VAC |
| With Over-current, Over-voltage, Over-temperature, Short-circuit protection function | |
| Operating temperature: | 0~40℃ |
| Safety standards: | IEC62368 EN62368 UL62368 GB4706 GB4943 J62368 |
| EMC standards: | EN55032 class B/EN61000 GB17625 FCC Part15 |
