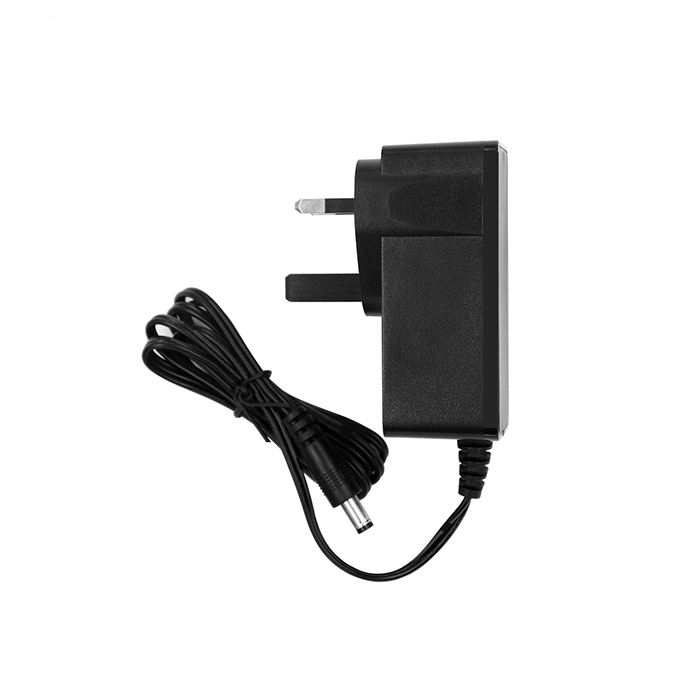

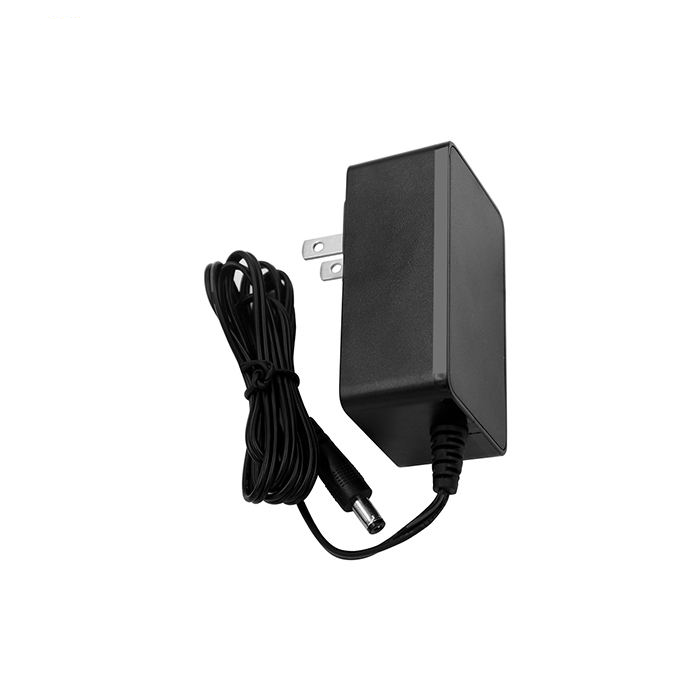

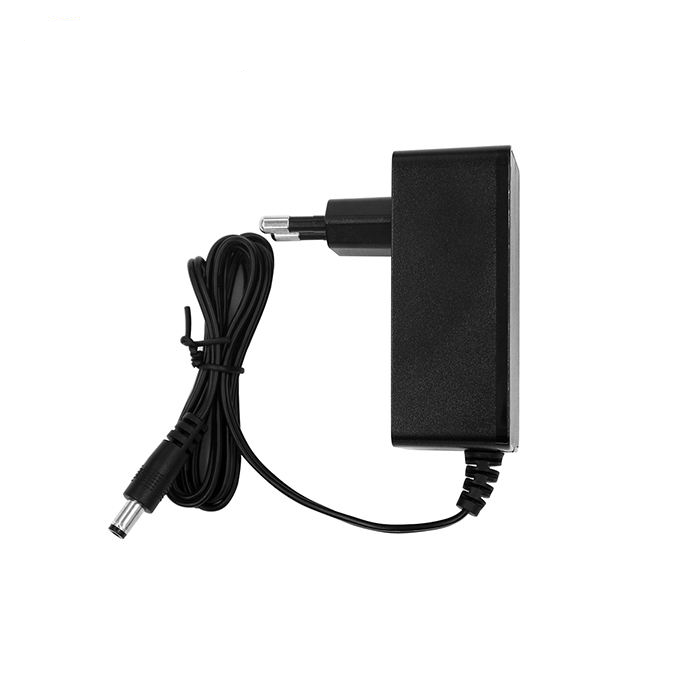

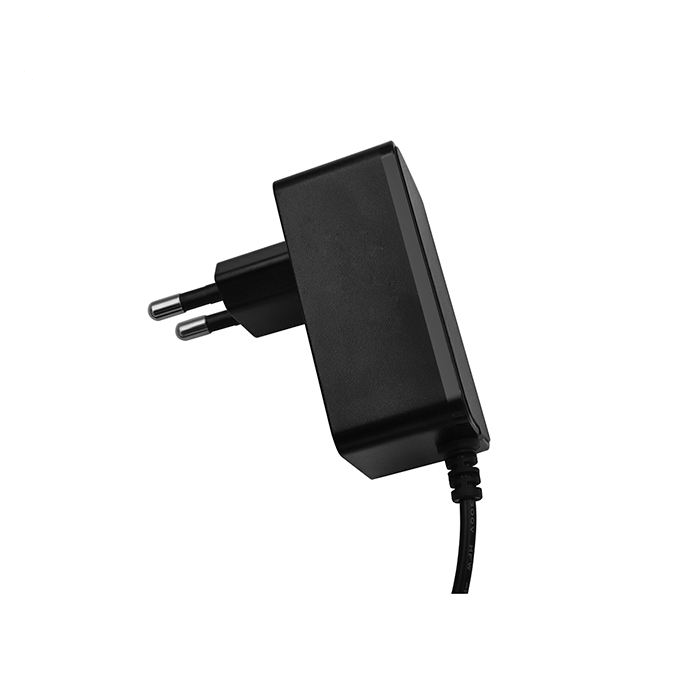

CE UL PSE KC CB PSE RCM Rohs BIS Certificate 12V3A 24V 1.5A 36W Wall Mount Type AC/DC Power Adapter

36W 24V 1.5A 1.5AMP 1500MA Ac Dc Power Adapter with EU US AU UK JP KR in Plug
Product Specifications
Input Voltage: 100~240Vac(Range:90~264Vac)
Input Current: 1.0A max
Frequency: 50/60Hz(Frequency range:47~63Hz)
Output voltage: 24V
Output current: 1.5A
Ripple & Noise: 120mV max
Power consumption at no load: 0.1W max
Conversion efficiency: >87.4%
Voltage regulation/Load regulation: ±5%
CC/CV
Hi-pot test: 3000 VAC/1min/5mA
Leakage current: 0.25mA max @240 VAC
With Over-current, Over-voltage, Over-temperature, Short-circuit protection function
Operating temperature: 0~40℃
Safety standards: IEC60065 EN60065 UL60065 GB8898 J60065
EMC standards: EN55022 class B/EN61000 GB17625 FCC Part15
Availability:
Quantity:
  • HDS3601A

  • HUNDA


36W 24V 1.5A 1.5AMP 1500MA Ac Dc Power Adapter with EU US AU UK JP KR in Plug

Product Specifications


Input Voltage: 100~240Vac(Range:90~264Vac)
Input Current: 1.0A max
Frequency: 50/60Hz(Frequency range:47~63Hz)
Output voltage: 24V
Output current: 1.5A
Ripple & Noise: 120mV max
Power consumption at no load: 0.1W max
Conversion efficiency: >87.4%
Voltage regulation/Load regulation: ±5%
CC/CV
Hi-pot test: 3000 VAC/1min/5mA
Leakage current: 0.25mA max @240 VAC
With Over-current, Over-voltage, Over-temperature, Short-circuit protection function
Operating temperature: 0~40℃
Safety standards: IEC60065 EN60065 UL60065 GB8898 J60065
EMC standards: EN55022 class B/EN61000 GB17625 FCC Part15

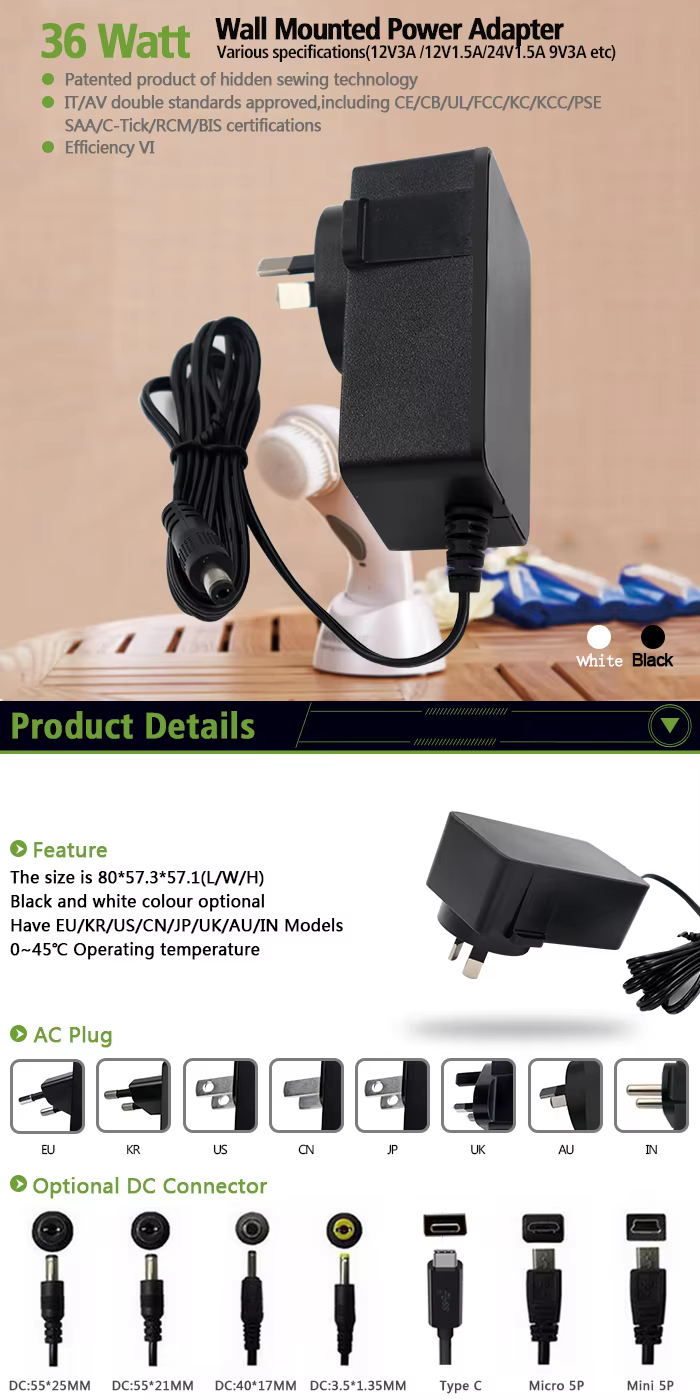

微信图片_2025-12-23_142954_957


宣传 宣传2 宣传3
